Racing Air Jack kits

Our Racing Car Air Jack System Kits is designed to save time and effort during pit stops. It is a powerful and reliable system that can lift the racing car with the press of a button, and the lift time is shorter than traditional racing air jacks. The system is made of Aluminum 6061 T6. It is also designed with safety features, such as anti-sway and anti-slip, to protect the car and its passengers during lifting.

Our Race Car Pneumatic Jacks have a cylinder length of 321mm, a bore size of 53.7mm, a stroke of 234mm, and a weight of 1.38kg per cylinder. It has a powerful lift capacity of 500kgs and is designed to operate at a maximum pressure of 30 bar. Our Race Car Air Jack Systems Kits are available in AJ-300 and AJ-400 kits, with either three or four cylinders. They are anodized with a PP-04 flashing blue finish, but if you would like to change to a different anodized color, the minimum order quantity is 10 sets and we can help you change to any other anodize color from the color swatches. We also have safety props, please do not hesitate to contact us for further info about air jacks for race cars.

Racing Car Air Jack System

PARTS

Item No.	Description	Material
AJ-001	Pneumatic Air Jack Cylinders	Aluminum 6061 T6
AJ-002	Fast Air Jack Lance	Aluminum 6061 T6 & Iron SS41
AJ-003	Air Jack Connector Valve	Aluminum 6061 T6 & Stainless Steel 304
AJ-004-1	Car Body Connector Kit - for AJ-300	Aluminum 6061 T6 & Iron SS41
AJ-004-2	Car Body Connector Kit - for AJ-400	Aluminum 6061 T6 & Iron SS41

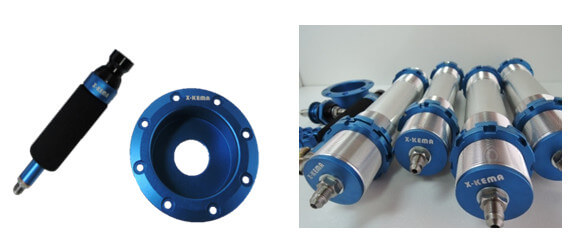

AJ-005	Connector Valve Holding Set	Aluminum 6061 T6

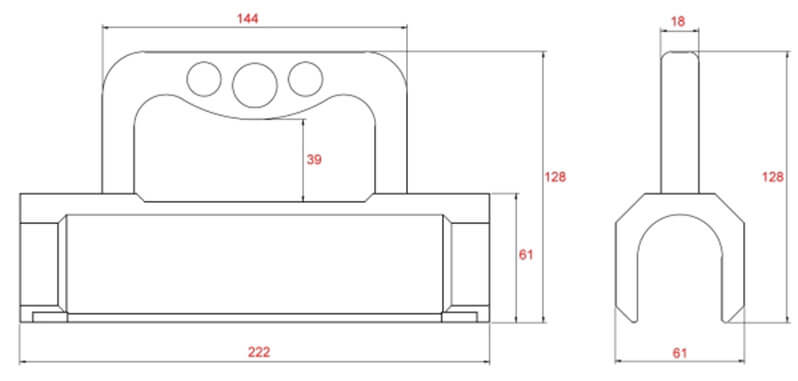

AJ-006	Safety stand / Safety Prop	Aluminum 6061 T6

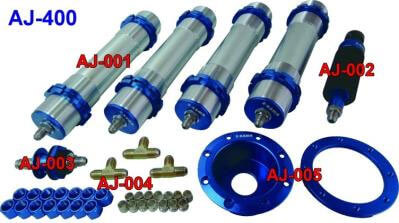

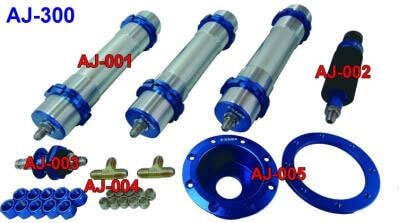

AJ-300		AJ-400

LOGO Positions (1 set is also available for Custom logo without extra charge)	AJ-006

Packing			Air Jack Cylinder Specification
	Weight	Carton size	Bore Size	Cylinder Length	Stroke	Weight	Lift Capacity	Max. Operating Pressure	Total
AJ-300	7.2 kgs	51*22.5*25 cm	53.7 mm	321 mm	234 mm	1.38 kgs	500 kgs	30 bar	346 mm
AJ-400	8.7 kgs

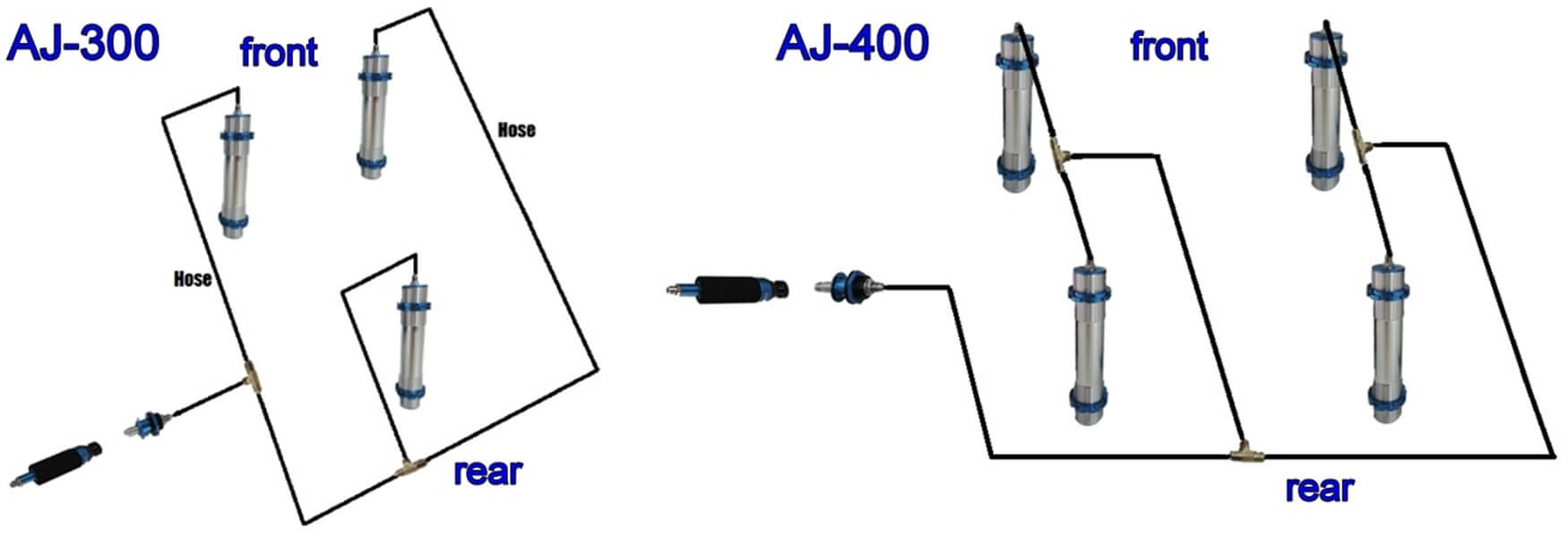

Installation Reference
